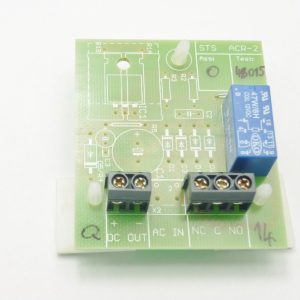

This is a 12 volt relay module with one pair of changeover contacts. Contact material is gold over silver alloy. Suitable for switching low voltages and low currents. Back EMF suppressing diode is fitted across relay coil. Used in the security industry for all sorts of interfacing tasks.
Solidly built and tested to a high standard in the UK by STS. Includes three adhesive-backed mounting feet.
Max designed voltage in: 15.5 volts dc
Min operating voltage in: 10 volts dc
Current consumption: 15mA
Contact ratings: 2 amps @ 12/24 volts
Dimensions: W 59mm x D 51mm x H 15mm
- Note: These modules have ID No. 14 bottom right to differentiate them from other similar looking STS modules.
